EYDFA-C-HP-BA-33-SM-B2 High Power Erbium-doped SM Fiber Amplifier
Erbium-doped fiber amplifiers (EDFAs) are optical signal amplification devices based on erbium-doped fiber, operating in the wavelength range of 1530–1565 nm, which coincides with the minimum loss window of optical fiber communication. Their core functionality involves exciting erbium ions (Er³⁺) using a 980 nm or 1480 nm pump light source, achieving all-optical amplification of the optical signal without photoelectric conversion. Since its introduction in 1985, the EDFA has become a core component of optical fiber communication. In 2022, institutions such as the China Information and Communication Technologies Group (CICT) further promoted its independent development, integrating the RS232 communication protocol for intelligent monitoring.
This is a C Band erbium-doped fiber amplifier. Here is a desktop type, customizable module fiber amplifier.
The working mode can be set to ACC or APC or AGC. Click the ‘Mode’ area to switch the working mode. In ACC mode, we cann set the operating current value. In AGC mode, we cann set the gain value. In APC mode, we cann set the power value. Use the up and down arrow keys on the right side of the screen to adjust the corresponding parameters. We can also click ‘Power Set’ or ‘Current Set’ or ‘Gain Set’ to enter the value you want. The amplifier can also be controlled by software.
The test report of this 33dBm fiber amplifier.
1465nm 500mW Fiber Laser Source FL-1465-500-SM-B
The 1465nm 500mW single-mode fiber benchtop laser features an all-fiber integrated design, achieving stable output through high-precision doped fiber and semiconductor pumping technology. Its core structure consists of three key modules: a seed source module utilizing distributed feedback (DFB) technology; an erbium-doped fiber amplifier module achieving 500mW amplification through multi-stage pumping; and an intelligent temperature control module.
This is the single-mode fiber output. Desktop touch screen model, the parameters are visible on the screen and can also be adjusted. We can adjust the current directly on the screen. We can also set the current value directly. It also supports software control.
Utilizing high-stability single-mode fiber technology, it delivers a 1465nm output wavelength and 500mW power, offering excellent beam quality and suitable for applications in scientific research, medical treatment, sensing, and other fields. Its compact benchtop design supports plug-and-play operation and features intelligent temperature control and overload protection, ensuring continuous and stable operation. Compatible with OEM integration and customizable pulsed/continuous mode, it is an ideal light source for precision experiments and industrial testing.
This laser achieves high stability and low phase noise through optimized resonator design and high-quality optical components.
The test report of this 1465nm fiber laser.
1550nm 37dBm 5W High Power SM Fiber Coupled Laser
What our laboratory demonstrates today is a 1550nm 37dBm IR laser coupled singlemode optical fiber output. The output power is adjustable with an adjustment range of 0.5~5W. The adjustment accuracy is 1mW. The Line-width here is 3.7 MHz, and the line width of 1MHz can be customized. The laser can be controlled through the buttons on the panel to adjust the laser output power. 1550nm is infrared invisible light, and the light spot can be observed with an infrared sensor plate. Let’s check it now.
This laser adopts DFB type laser chip, and cooperates with high-power gain optical path module to realize single-mode fiber output of single-wavelength high-power laser. The professionally designed drive and temperature control circuit control ensures the safe and stable operation of the laser, and the spectrum and power remain stable for a long time. The modular package has a compact structure, which is convenient for user system integration and is more suitable for engineering applications.
What is configured here is single-mode fiber, and polarization-maintaining fiber can be customized. The laser can also be controlled through software, and the communication interface is RS232. The following is the interface for the control software.
The power switch is on the back of the laser.The LCD panel displays the laser output power. Turn the key to ON, the laser is activated, and the Active indicator lights up.
Use the left and right buttons to select the number position to be adjusted (units, tens, hundreds, thousands). The up and down buttons adjust the value. The middle button is the confirmation key.
These are laser test reports, including the main parameters of the laser, spectrum diagram, power stability test, and line width test results.
C-band 20mW ASE Light Source Micro Module With SM Fiber
The light source outputs a flat spectrum covering the C-band and has moderate output power. At the same time, due to the unique miniaturized design and miniature package, it is the smallest ASE broadband light source at present, which is very suitable for applications in narrow space conditions. Let’s check it now.
This is a C-Band 20mW Micro ASE light Source, 10mW~50mW output power can be customized. After turning on the laser, the green indicator light will light up. And the ASE starts working, with invisible light output in the 1528~1563nm band.
Test data report of the small C-Band 20mW ASE.
Spectrogram and power stability of actual tests.
405nm Blue-viole Laser Coupled SM Fiber Output
This is a 405nm 80mW single mode fiber laser desktop type. The real-time power is displayed on the LCD screen, and the power can be adjusted by the button on the left.
It can also be customized into modules and controlled by software. Desktop reserved RS232 interface, software control function can be added. This laser quipped with single-mode fiber, PM fiber can also be customized. The fiber output interface is FC/APC by default, and can also be customized with SMA, FC/PC and other models.
The test data sheet of 405nm 80mW laser.
Adjust the laser output power via the button:
Use the left and right buttons to select the value position to be adjusted.
The upper and down buttons adjust the value.
The middle square button determines the adjustment setting.
488nm Single-mode Fiber Laser System Module Type
Today we bring a 488nm single-mode fiber laser module. This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).
This is a modular structure, and the desktop model can also be customized. The laser output power can be adjusted, and the adjustment range is 10% ~ 100%. The laser can be controlled by software, connected to the computer via RS232-USB.
The fiber here is single-mode, and polarization-maintaining fiber can also be customized.
Datasheet of actual measurements of the laser.
The spectrum diagram and power stability test diagram of the laser.
TEM00 Lab Laser 532nm 15mW SM Fiber Laser Source
The demonstration in our laboratory this time is a 532nm 15mw single-mode fiber laser. It has an LCD display to show the current power of the laser. The output power of this laser can be adjusted from 10% to 100%, and the adjustment accuracy is 0.1mW. Let’s check it now.
The back of the laser has an RS232 interface. It can be customized for software control functions. The key controls the ON/OFF of the laser. Here is SM fiber, and PM fiber can also be customized.
The test data report of 532nm single mode fiber laser.
Laser spectrum graph and power stability test report.
This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).
Single-mode Fiber Laser 528nm 10mW Green TEM00 Laser Source
In the video below is 528nm 10mW fiber laser system. It is configured with single-mode fiber. The screen can display the current power, and the power can be adjusted through the buttons. 10%~100% output power can be adjusted. The power regulation accuracy is 0.1mW. The highest power of this unit is 10mW, other output power can be customized. Here is SM fiber output, PM fiber output can be customized.
This laser adopts semiconductor laser chip, and the professionally designed drive and temperature control circuit temperature control ensures the safe operation of the laser, stable output power and spectrum, and excellent spot quality (TEM00 mode).
The test data sheet of 528nm 10mW SM fiber laser source.
Spectral graphs at different powers.
Power stability at different power levels. It can be customized to achieve the most stable state under the specified power.
37dBm Yb-doped SM Fiber Amplifier Benchtop
It’s a high power Ytterbium-doped optical amplifier, its output power is 37dBm. And high power YDFA built-in 3 cooling fans. The software control function can be customized, and the default is button control. The current working mode, current and output power are displayed on the front display.
It supports APC and ACC two working modes, and the two modes can be switched. In ACC mode, the working current can be adjusted. In APC mode, the output power can be adjusted.
The test report of YDFA-37-SM.
SM Fiber Laser System SLD Broadband Light Source
SLD broadband light source adopts super radiant semiconductor diode light-emitting chip, which outputs broadband spectrum with low coherence degree and high output optical power spectral density. The operating wavelength can be selected from O, S, C, L and other bands, suitable for optical OCT, optical fiber sensing applications.
This is a 1550nm 10mW SLD light source of module type. It is equipped with a single mode fiber. It can be customized power adjustable version. When the power adjustment is selected, the power adjustment is controlled through the RS232 serial communication. The standard version is a fixed power mode, the light source is controlled by the button. We tested it with an infrared photosensitive film, and we could see a light spot.

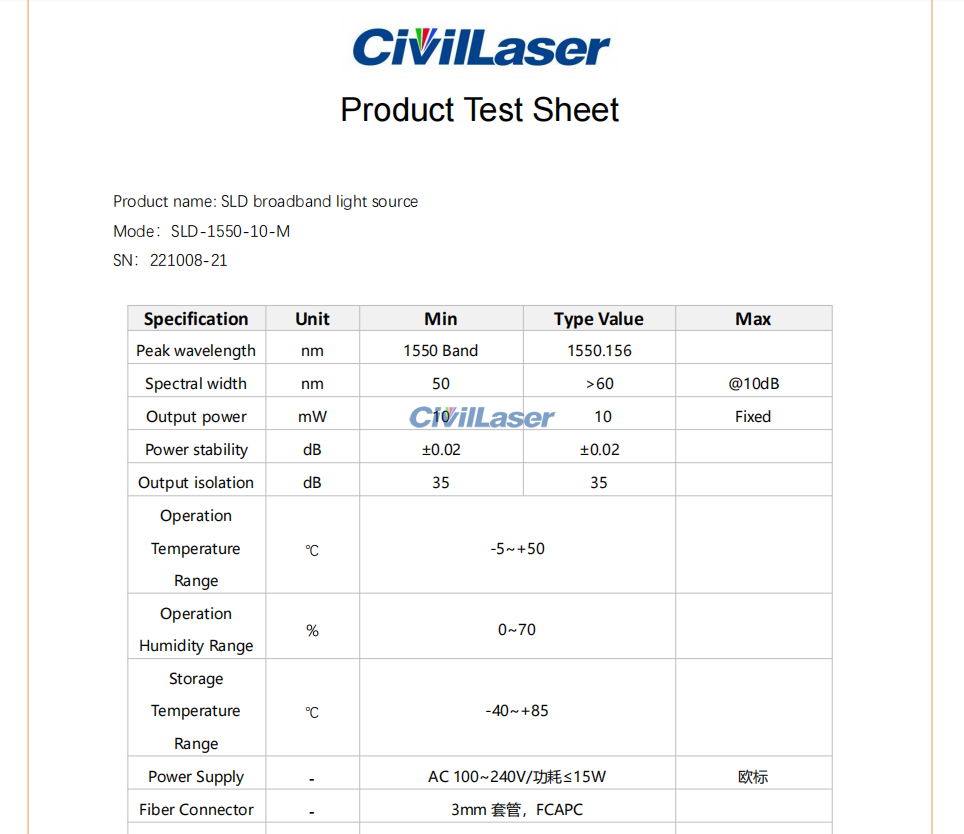

The test data report and spectrum of 1550nm light source.
