532nm & 5W Power Define A New Standard For Solid-State Laser
All solid state 532nm green laser is made features of good beam profile, ultra compact, long lifetime and easy operating, which is widely used in collimation, laser medical treatment, scientific experiment, optical instrument, laser display, etc.

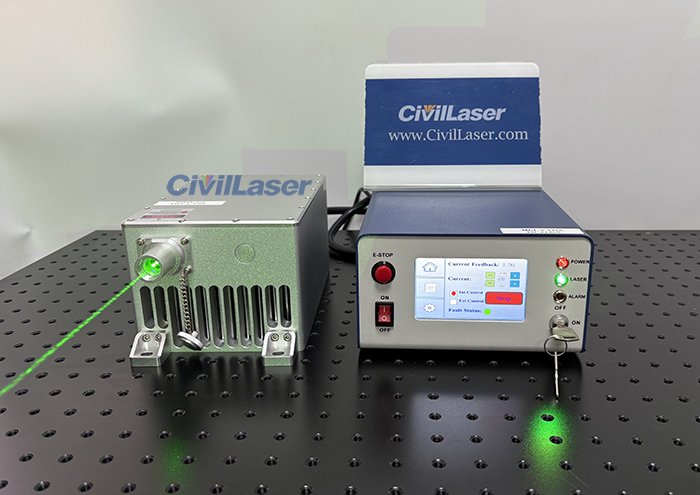

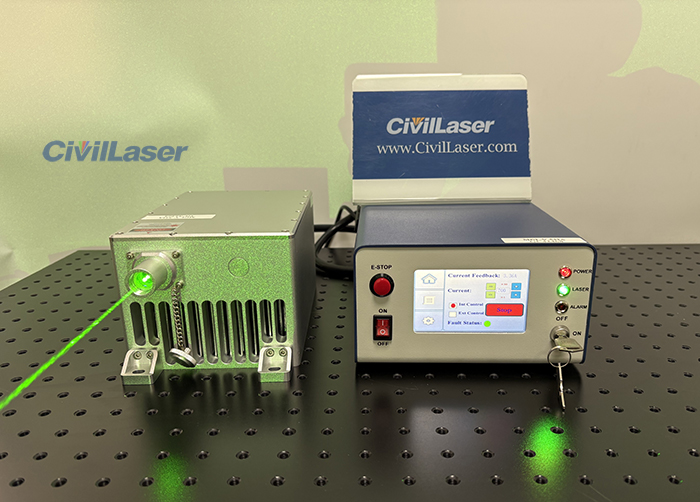

Today we are introducing a brand new 532nm 5W solid-state laser. This laser now uses a touchscreen power supply. The power supply has a built-in cooling fan.
Instructions for use:
Turn on the power switch. The ‘POWER’ light will illuminate. After the machine starts, it will automatically jump to the current adjustment page. Here, we can adjust the current value to adjust the output power. Click the ‘+’ and ‘-‘ buttons to the right of ‘Current’ to adjust the current. 1000 represents the full power current. The ‘X 50’ at the top represents an adjustment step of 50, and the ‘X 1’ in the second row represents an adjustment step of 1. The Current Feedback at the top of the panel represents the current operating current of the laser. After adjusting the current, click ‘RUN’ and simultaneously turn the key switch to ON. The laser will start working and output laser light. The ‘LASER’ light will illuminate. Click ‘STOP’ to stop the laser from working. The ‘LASER’ light will turn off.

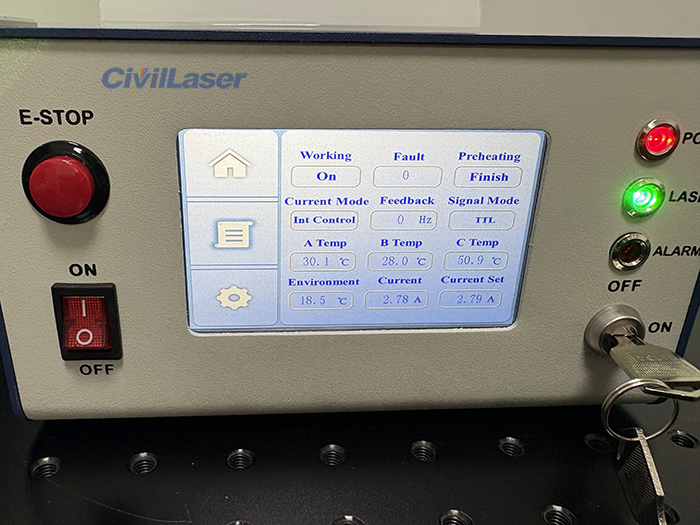

Click the second button on the left side of the screen. This page shows the current operating status of the laser. When switching to analog modulation mode, click the settings icon in the lower left corner and enter the password.
The test report of this dpss laser system.
520nm 22W Lab Laser Fiber Output PC Control
This is 520nm high power green fiber laser system. This laser adds software control. Use RS232-USB to connect the laser and computer software.The laser output power can be adjusted by software. Using EasyHost software, you can also write your own programs to control the lower computer according to the communication protocol.
The output power is 22W laser, it is a high-power laser, we added a heat sink under the laser module. The heat sink is composed of aluminum sheets and 3 cooling fans. Its fiber is pluggable, here we choose a 1000μm fiber. Let’s check it now.
Software Operation:
Click ‘Open COM’, the software links the lower computer control circuit of the laser. When starting the software for the first time, set the maximum current first, and set a maximum current value according to the laser test report. If the current is too large, it is easy to burn out the laser chip. For each laser, the maximum current must be set first.
Which color laser beam brightest?
Which color laser beam brightest?
Human eye is most sensitive to green light.
So the same power laser beam, green laser beam is the brightest.
