1030nm 30dBm 1W SM Fiber Laser Source Benchtop

This laser adopts all-fiber laser technology, professionally designed and driven temperature control circuit and control to ensure the safe operation of the laser and stable laser output power and spectrum. It is suitable as a seed laser for higher power laser systems, and can also be used for production testing of optical fiber devices. It can be provided in benchtop or modular packaging.


It is a single-mode fiber copuled laser at 1030nm 1000mW. The laser output power is adjustable from 100mW~1000mW, and the adjustment accuracy is 1mW. It can be adjusted by buttons. Customizable software control function, connect with computer via RS232-USB. Configured with single-mode fiber Hi1060, and can also customize polarization-maintaining fiber output.
1030nm is invisible light, we use infrared photosensitive film to observe the light spot.



The Test Data Sheet & Spectrum at 1030nm, spectral bandwidth <0.2nm.



Ytterbium-doped Fiber Amplifier PM Fiber Laser Source Benchtop

The following is a demonstration of the operation of the desktop YDFA button control.  Let’s check it now.

This is a Ytterbium Doped Fiber Amplifier with PM Fiber. The working wavelength is 1030nm~1070nm. It supports ACC and APC working modes. We can switch the APC/ACC working mode with the left and right buttons. At the same time, this machine also supports power regulation. In the APC working mode, press the up and down arrow buttons to adjust the power.



Ytterbium-doped fiber amplifier (YDFA) generates gain by pumping ytterbium-doped fiber with a semiconductor laser, and is used to amplify laser signals in the 1030~1100nm band. PM980 polarization-maintaining fiber output, the output power is continuously adjustable, and has the advantages of high gain and low noise. The desktop YDFA is convenient for experimental operation, and the user can adjust the pump current and output power through the buttons on the front panel. A more compact modular YDFA is also available, which is convenient for users’ system integration. Both desktop YDFA and modular YDFA can support PC software control and serial port command control.

The test report of 27dBm 500mW YDFA.



1550nm Single Stage PM Optic Isolator

Today we are going to explain the 1550nm single-stage fiber isolator. 1310nm PM fiber isolator is optional. The default fiber is PM1550 fiber. The FC/APC interface is used by default, other interfaces can be customized according to your needs. Let’s check it now.


The Polarization Maintaining Isolator is characterized with low insertion loss, high isolation, high return loss, high extinction ratio and excellent environmental stability and reliability. It is ideal for polarization maintaining fiber amplifers, fiber lasers, high speed communication systems and instrumentation applications.



Test report for 1550nm polarization maintaining fiber isolator.


405nm Semiconductor Laser 12W Powerful Laser Source

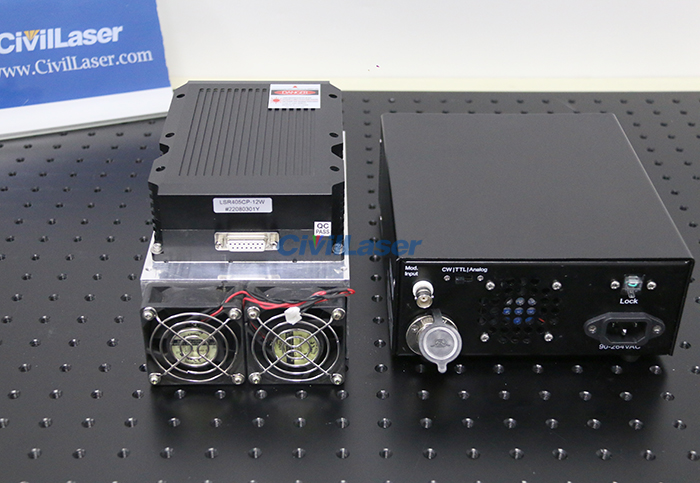

This is a 405nm 12W blue-violet laser System. It is high power solid state laser with a heat sink installed at the bottom of the laser module. The radiator is aluminum with 2 cooling fans. Configuring a heat sink can effectively extend the continuous working time of the laser. There are 3 working modes on the back of the laser power supply: CW/TTL/Analog. The output power of the 0~12W laser can be adjusted by the Adjustor rotary button.



The 405nm 12W laser needs a collection of multiple LDs to have such a high power, so the spot mode is also multimode.
The 405nm laser is a blue-violet laser, which is close to ultraviolet invisible light. The 12W laser is not very dazzling to the naked eye. But the energy is very strong, please wear laser safety glasses when operating.

CivilLaser have mature production technology, stable quality and short production cycle.



300mW 2200nm Infrared Fiber Optic Lab Laser System

The 2200nm multimode fiber-coupled laser is fiber-coupled with a 2200nm semiconductor laser to obtain fiber output. The coupled fiber output laser power stability is good, the spot pattern can be improved, and the collimated beam can meet the demand for high beam requirements.

It is a 2200nm 300mW laser system with 400μm fiber. The optical fiber is pluggable, and it’s interface can be customized according to customer needs. It supports two working modes: CW and Modulation. The laser output power is adjustable by rotating the silver-white rotary button. The middle display shows the magnitude of the current. The higher the current, the higher the output laser power.



The test report for the 2200nm laser.

civillaser-2200nm-300mw-fiber-laser-4 civillaser-2200nm-300mw-fiber-laser-5 civillaser-2200nm-300mw-fiber-laser-6



520nm 2800mW Green Diode laser Lab Laser System

This is a 520nm 2800mW green laser system. The laser supports 3 working modes: CW, TTL, Analog. In addition, the Lock crystal head cannot be pulled out. External signal Mod Input, no need to connect in CW working mode. It is free space output by default, fiber-coupled output can be customized.

The laser output power can be adjusted by adjusting the operating current. In addition, the red STOP button is used for emergency stop, and it is not needed under normal circumstances.



The 520nm 2800mW green semiconductor laser beam.





543nm Green Solid State Laser with SMA905 Optical Fiber

This is a 543nm solid state laser system. The output power is 100mW, it can be adjusted by the rotary button on the power supply. The red button is the power switch. The key is a laser switch. The middle LCD shows the current working current. The rotary button on the right is to adjust the current size.

There are 3 working modes for the laser to choose from. Select the working mode CW/TTL/Analog by the sliding button on the back of the power supply.


This laser coupled a 1000μm, 3 meters in length, SMA905 interface fiber, and its can be customized.


The effect of laser output from the fiber port.
