Most Powerful burning Green Laser pointer Instructions – 1 x 18650 battery
Most Powerful burning Green Laser pointer Instructions – 1 x 18650 battery
1. Battery installation method.
The anode point to the lid.
.jpg)
1 x 18650 battery (Not Include)
2. The use of attention
Do not continuous light the laser over 120 seconds, we advice you turn off the laser every 60 seconds when the room temperature is too high. This is a high power handheld laser pointer, large heat productivity but do not have the heat radiating device, long time lighting is easily burnt out laser tube, will cause the laser point does not light or faint light.
3. Security warning
★ Do not look at the laser directly.
★ Do not use laser irradiation of others.
★ Do not use laser irradiation the objects which is easy to reflect light.
★ Do not let a minor child touch laser pointer.
Charge Description：
When charging the red light is on, after charging full the signal light is green.
Charging time reference:
1. 18650 battery: About 6 hours;
Lithium battery using common knowledge:
1. Do not over charging, over discharge, or whatever the lithium battery once will be scrapped (remember not to reduce the service life, was scrapped)
2. Do not run out the battery power, when you find that the lights dimmed you need to charge. (Do not charge too long time, just full is the best 😉
3. Beware of the battery is shorted, because the battery is not set short-circuit protection can result in excessive heat, or explosion
4. Do not throw batteries into fire, otherwise it will explode.
日本語 使用注意
連続使用時間は120秒を超えないでください。室外の温度は高い時に60秒毎に閉じたほうがいいです。
これはレーザーポインターの高効率のハンディタイプです。高効率なので発熱が大きい、それにハンディタイプは放熱装置が配置されていないので、長時間使用とレーザーパイプが燃しやすい、レーザーポインターが点滅しないや光が微弱の問題が起こります。
安全警告
★ レザーを直視ないでください。
★ 他人にレザー照射をしないでください。
★ 反射し易いものにレザー照射をしないでください。
★ 未成年の子供をレーザーポインターに接触させないでください。
Powerful blue laser pointer Manual – 2 x 16340 batteries
Powerful blue laser pointer Manual – 2 x 16340 batteries
1. Battery installation method.
The anode point to the lid.
.jpg)
2 x 16340 battery (Not Include)
2. The use of attention
Do not continuous light the laser over 120 seconds, we advice you turn off the laser every 60 seconds when the room temperature is too high. This is a high power handheld laser pointer, large heat productivity but do not have the heat radiating device, long time lighting is easily burnt out laser tube, will cause the laser point does not light or faint light.
3. Security warning
★ Do not look at the laser directly.
★ Do not use laser irradiation of others.
★ Do not use laser irradiation the objects which is easy to reflect light.
★ Do not let a minor child touch laser pointer.
Charge Description：
When charging the red light is on, after charging full the signal light is green.
Charging time reference:
16340 battery: About 4 hours;
Lithium battery using common knowledge:
1. Do not over charging, over discharge, or whatever the lithium battery once will be scrapped (remember not to reduce the service life, was scrapped)
2. Do not run out the battery power, when you find that the lights dimmed you need to charge. (Do not charge too long time, just full is the best )
3. Beware of the battery is shorted, because the battery is not set short-circuit protection can result in excessive heat, or explosion
4. Do not throw batteries into fire, otherwise it will explode.
日本語 使用注意
連続使用時間は120秒を超えないでください。室外の温度は高い時に60秒毎に閉じたほうがいいです。
これはレーザーポインターの高効率のハンディタイプです。高効率なので発熱が大きい、それにハンディタイプは放熱装置が配置されていないので、長時間使用とレーザーパイプが燃しやすい、レーザーポインターが点滅しないや光が微弱の問題が起こります。
安全警告
★ レザーを直視ないでください。
★ 他人にレザー照射をしないでください。
★ 反射し易いものにレザー照射をしないでください。
★ 未成年の子供をレーザーポインターに接触させないでください。
Instructions Small Laser Module With TTL — CivilLaser
Small Laser Module With TTL — CivilLaser
TTL laser module Operating Instructions
——————————————————————————————————————-
Jun 23,2015 Update
TTL laser modules inlcude three lines.
1. Red Line: Red line connect the positive;
2. Black Line: Black line connect the negative;
3. Yellow Line: Yellow line connect the positive signal line, Negative signal line connect the black line;
Continuous work-mode (1mw~10mw Laser module)
1. Red line connect the positive power supply;
2. Black line connect the negative power supply;
3. Yellow line vacancy;
Continuous work-mode (10mw~100mw Laser module)
1. Red line and Yellow line connect the positive power supply;
2. Black line connect the negative power supply;
TTL modulation(1kHZ~1000kHZ / 2V-5V)
1. Red line connect the positive power supply;
2. Black line connect the negative power supply;
3. Yellow line connect the positive signal line;
4. Black line connect the negative signal line;
(Note: In Modulation mode, the black line be connected the negative power supply and the negative signal line;)
——————————————————————————————————————-
Modulation module instructions
1. When in use, connect the red and yellow line, the module will be bright, and in continuous work mode;
2. When you want modulation, connect the negative of signal line to black line, and positive to yellow line, keep the red line suspended, then the module in modulation mode;
3. Signal input should be in the range of 300KHZ;
4. The input voltage of modulation work is 3.3V, continuous work input voltage is 3.3V.
.jpg)
Laser knowledge summary (Updating…)
Summary of Common Laser Knowledge (to be continuously updated)
☆Laser module — The relationship between the power,brightness and working disance
http://www.blog.civillaser.com/?p=70
☆Introduction to the characteristics of laser pointers of various wavelengths (colors)
http://www.blog.civillaser.com/?p=146
☆Which color laser beam brightest?
http://www.blog.civillaser.com/?p=33
☆Different laser wavelengths which band burning something stronger?
http://www.blog.civillaser.com/?p=37
☆Focus adjustable burning laser poitnre
http://www.blog.civillaser.com/?p=161
☆Laser beam class level & Laser Safety Classification
http://www.blog.civillaser.com/?p=58
☆Various wavelengths of the laser beam/ Laser Knowledge — CivilLaser
http://www.blog.civillaser.com/?p=77
☆Comparison of brightness of light spot and beam among lasers of different wavelengths
http://www.blog.civillaser.com/?p=159
☆Instructions Small Laser Module With TTL — CivilLaser
http://www.blog.civillaser.com/?p=120
☆Most powerful blue laser pointer 445nm 3000mw laser — 2×16340 or 2×18650
http://www.blog.civillaser.com/?p=131
☆ Most Powerful burning Green Laser pointer Instructions – 1 x 18650 battery
http://www.blog.civillaser.com/?p=128
☆ Powerful blue laser pointer Manual – 2 x 16340 batteries
http://www.blog.civillaser.com/?p=124
☆Different wavelength has different light emitting principle.
http://www.blog.civillaser.com/?p=35
☆Different laser wavelengths, What are the shape of the laser spot?
http://www.blog.civillaser.com/?p=39
☆CivilLaser DPSS Lasers 405nm 457nm 473nm 515nm 520nm 532nm 561nm 589nm 607nm 637nm 671nm
http://www.blog.civillaser.com/?p=141
☆Calculation method of laser divergence angle
http://www.blog.civillaser.com/?p=151
☆Laser Spatial mode
http://www.blog.civillaser.com/?p=155
☆Bonding crystal, optical cement crystal, separated crystal
http://www.blog.civillaser.com/?p=157
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
Get laser giveaway from Civil Laser
Laser Pointer / Laser sight: www.lucklaser.com
Laser Module / Laser diode / DPSS Laser / : www.civillaser.com
If you are interested in our products and want to be our distributor, tell us your company information, some kind of laser products we can support free samples to our customers.

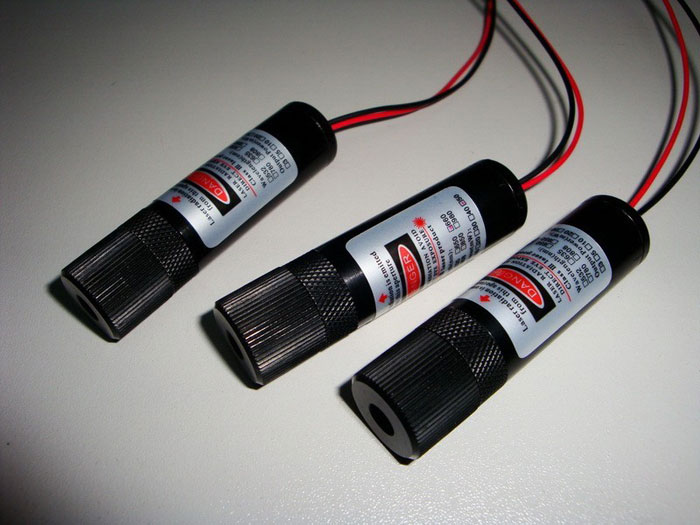

Laser module(Line/Crosshair) — The relationship between the power and the Sophistication
Laser module(Line/Crosshair) — The relationship between the power and the Sophistication
Laser module / Laser marking device / Laser Module Knowledge — CivilLaser
Laser module / Laser marking device / Laser Module Knowledge — CivilLaser
Laser shape: Dot / Line / Crosshair
The more power greater more brightness.
When in use, not power greater the better, depending on the work environment needs!
① high-power, high brightness, can work in bright light, but poor accuracy!
② Small power brightness is small, but high accuracy!
1. The laser beam will absolutely not allow exposure to human and animal eyes.
2. Red laser module, blue violet laser module with the power 10MW-150MW can continuous working time is 24hours (size more than 16*68mm), more than 200MW power is not recommended more than 30 minutes, otherwise it will overheat and effect of LD life.

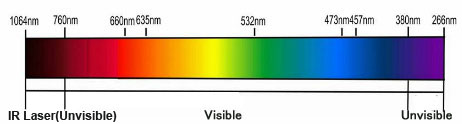

Various wavelengths of the laser beam/ Laser Knowledge — CivilLaser
Various wavelengths of the laser beam/ Laser Knowledge — CivilLaser
1. Brightness: Green laser beam > Red laser beam > Blue-violet laser beam
2. Price: Blue-violet laser beam > Green laser > Red laser
3. Poly thermal performance (Burning feature): Blue-violet laser = Red laser > Green laser
4. Stability: Red laser = Blue-violet light > Green laser(green light influenced by the climate, cold environment to make
With, you need to warm up)
Laser module — The relationship between the power,brightness and working disance
Laser module — The relationship between the power,brightness and working disance
Laser Module — Knowledge (CivilLaser)
| Output power | Brightness Level | Best Working distance | Description |
|---|---|---|---|
| <5mw | Micro Light | < 0.5 meter | 1. In less than 0.5 meters.
2. Under the weak light environment. |
| <10mw | Low Light | < 1 meter | 1. In less than 1 meters.
2. Under the weak light environment. |
| <100mw | Middle Light | < 3 meters | 1. In less than 3 meters. 2. Under 8 fluorescent lights environment. You can see the laser beam. |
| <200mw | High Light | < 5 meters | 1. In less than 5 meters. 2. Under 30 fluorescent lights environment. You can see the laser beam. |
| >250mw | Ultra-high Light | < 8 meters | 1. In less than 8 meters. 2. In good light,under unlight scattering environment. You can see the laser beam.(Direct sunlight, unavailable) |
